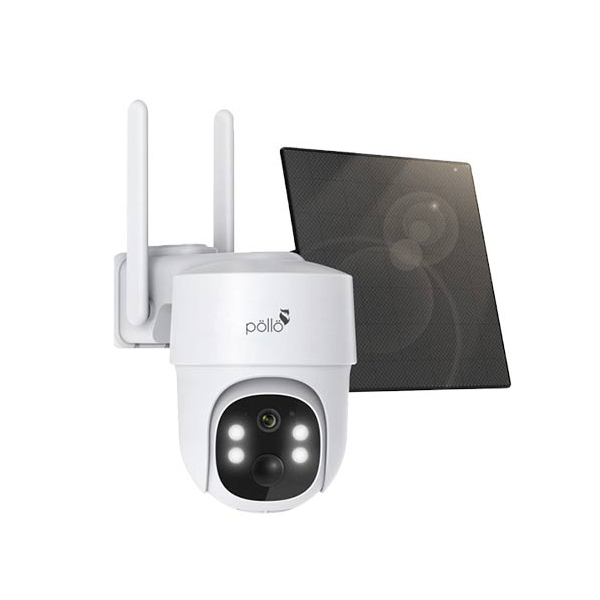

Pollo 3MP 4G Smart Wi-Fi PTZ Camera With Solar Panel (PLC-HS304-TB-4G)
We ship throughout Karachi, Lahore, Islamabad, Rawalpindi and all over the country.
Get your order to your doorstep within 24 hours through iShopping’s Express Delivery (on eligible items).
About this Item
Pollo PTZ Camera With Solar Panel Delivered All Over Pakistan
iShopping.pk brings you the best price for Pollo 3MP 4G Smart Wi-Fi PTZ Camera With Solar Panel (PLC-HS304-TB-4G) with express shipping all over Pakistan.
Specifications:
|
Product Models |
PLC-HS304-TB-4G |
|
Form Factor |
PT Camera |
|
Product Colour |
White /black (optional) |
|
Antenna |
External antenna*2 |
|
Materials |
ABS + PC + Anti UV + antifoaming V0 |
|
White Balance |
Surface Finishing |
|
waterproof level |
IP66 |
|
Dimension(L*W*H) (mm) |
148*110*138mm |
|
Hardware solution |
T31ZL+SC3338+4G LTE |
|
PIR Sensor Detection range |
10 meters，110 degrees |
|
PIR Sensor Sensitivity |
High/medium/low, default medium; |
|
Lens |
3.6mm，F2.3 |
|
Viewing angle |
D:92°*H:77°*V:42° |
|
Image circle |
Ø6.9，1G3P |
|
Dimension |
M12*22.9mm； |
|
Camera Sensor type |
SC3338 |
|
Camera Sensor Resolution |
2304*1296 Pixel |
|
Night Vision |
10M distance（850nm） |
|
IR-LED & White LED |
4pcs 3030(IR led + white led）*0.5W /10m（λ=850nm）White light colour temperature ≧ 6000K |
|
Photosensitive |
Ø3，550nm |
|
Photosensitive threshold |
Colour cut black ：0.8Lux；Black Cut color：8.5Lux |
|
Working Indicator |
Red &blue dual colour*1 |
|
Charge indicator |
Red & blue dual colour*1 |
|
Mic |
Sensitivity：≥-32±3dBm，IP66 waterproof |
|
Speaker |
Round built-in 8Ω/2W，IP66 waterproof |
|
SIM Card |
Nano SIM Card |
|
TF Card |
Max Support 128G |
|
Button Switch |
Reset*1, Button Switch*1 |
|
Horizontal angle |
336° |
|
Vertical angle |
90° |
|
Speed |
high/medium/low, default medium; |
|
Battery Type |
2 pcs*21700 Lithium polymer battery |
|
Battery Capacity |
8600mAh/3.7V |
|
Standby life |
around 60 days； |
|
working life |
around 45days（10 times per day wake up/15S） |
|
IR Distance |
4G Standard |
|
4G Network type |
FDD/LTE-FDD |
|
4G Support frequency bands |
LTE-FDD：B1/B3/B5/B7/B8/B20 |
|
4G Version |
CN/AU/EU/JP/US/ASEAN(Optional) |
|
4G Maximum rate |
Maximum downlink rate：10Mbps Maximum uplink rate：5Mbps |
|
Third Stream |
25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) |
|
Power Supply |
DC 5V 1A（5W） |
|
Max. Charge Current |
Max. 900mA |
|
Standby Current |
around 5mA； |
|
Operational power consumption |
200-300mA（Average 250mA) |
|
Input port |
TF Card*1, Sim Card*1Type C*1,Mic*1,PIR*1, |
|
Output port |
Speaker*1； |
|
key type |
Tact Switch*2 |
|
Indicator light |
working red & blue*1； Charging red & blue*1 |
|
Audio Echo cancellation |
Support |
|
Audio Two-Way Talk |
Support |
|
Audio Start-up the bell |
Support |
|
Audio Rest the bell |
Support |
|
Audio Effective Volume |
Indication tone 75dB @ 0.5m |
|
Audio Compression method |
AAC、G.726 |
|
Video Format |
H.264+/H.265 |
|
Video frame rate |
Day/Night： 15fps; |
|
Resolution & frame rate |
3MP，SD/HD Optional default SD； |
|
Video playback |
Event playback and cloud storage playback |
|
IR turned ON: |
Enable night vision view, infrared, ICR automatic detection |
|
White turned ON: |
Passive trigger: passive trigger at night, white light alarm mode; |
|
System |
Linux |
|
Android |
Android 4.3 above |
|
IOS |
IOS 9.X above |
|
Mobile App |
CloudEdge (ios10.0，android5.0 ); |
|
Cloud platform |
Amazon |
|
Language |
Chinese， English， French， German， Italian， Spanish， Japanese |
|
Mobile APP |
Support configuration/real-time browsing/screenshot/playback/intercom/volume/video adjustment/record/photo album/format SD card |
|
On line visitor |
Support simultaneous online (up to 5 people) |
|
Human Body Filtering |
AI human shape detection |
|
Detection Sensitivity |
high/medium/low, default medium; |
|
Type of Alarm |
PIR trigger, low battery push, incoming call, message reminder, vibration reminder; |
|
Sound the alarm |
3S-sounds alarm Day）--event trigger |
|
Remote control and monitoring |
Support |
|
Power failure memory |
Support |
|
Pairing |
Scan QR Code |
|
Live browsing |
Open the mobile APP, activate the camera, and the drawing time ≤ 4 seconds |
|
Cloud Storage |
30 days free use |
|
OTA upgrade |
Support |
|
Alarm recording time |
15S/30S/60S optional in default 15S； |
|
Operating |
Blue light Normally on, Red light extinguish |
|
Sleeping |
Blue light extinguish, Red light extinguish |
|
Dial-in blue light/red light |
Flicker quickly |
|
Distribution network status blue light |
Normally on |
|
Update Status blue light/red light |
Normally on |
|
Disconnected status blue light/red light |
Extinguish |
|
SIM card not detected blue light/red light |
Flash alternately for 0.5s |
|
SIM card abnormality blue light/red light |
Flash alternately for 2s |
|
Charging Status |
Red light Normally on |
|
Full charge status |
Blue light extinguish |
|
Battery-free USB power supply |
No support |
|
Power key |
Long Press 3S for On or Off |
|
Reset Key |
Long Press 5S for reset |
|
Key time definition |
Set the Time |
|
Reset the device |
Indicator status of normal connection: Red light always on -> Red light slow blinking > Red and Blue light alternately slow blinking > Red and Blue light simultaneously fast blinking > Blue light always on; The red light always on means it is connecting to the server; The red and blue lights flash alternately slowly, means the SIM card is detected; Red and blue lights flashing at the same time, means connecting to the operator's network; blue light always on, means connected network and server successfully. |
|
Restart the device |
Red light always on>red light flash slowly>Red and blue lights alternately slow blinking>Red and blue lights flash rapidly simultaneously->blue light always on |
|
Broken networke |
The device hibernates in low-power mode and tries to connect to the network again every hour. The indicator is off |
|
Type-C USB Cable |
1m |
|
Solar Panel |
5W，Type-C USB cable 3m |
|
Screw Kit |
Package bag stainless steel screw*4+Expansion plug*4 |
|
User Manual |
English |
